Products

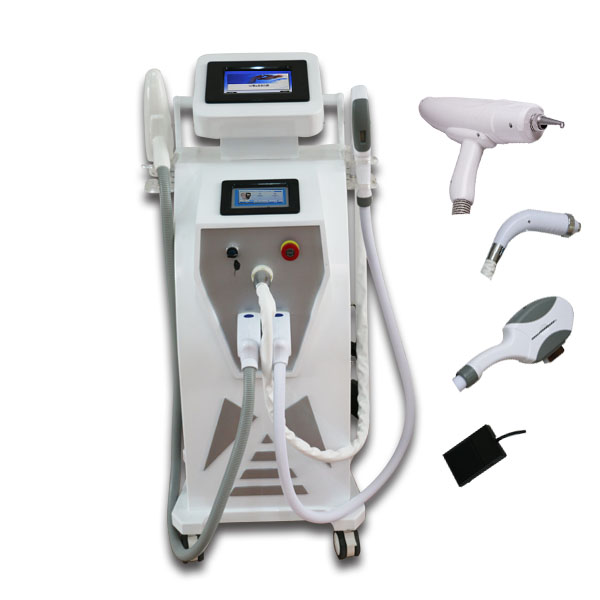

IPL SHR ND YAG LASER RF multifunctional beauty machine

Name: IPL SHR ND YAG LASER RF multifunctional beauty machine

Model No.: A31-4

Brand: fqbeauty

Series: Multifunction beauty machine

Information: Remove unwanted hair, Skin rejuvenation, Acne Treatment, Tattoo removal, Skin lifting

Treatment Theory

1.The Theory of Permanent Hair Removal:

The theory is the energy from IPL acting on the 15mm depth of surface, plus RF to prevent hair growth without hurting the sweat glands. Naturally,

the hair will be never grown for the hair follicles closed, and having no melanin. Generally, there are 3 cycle of hair growth: Growth Phase, Maturity

Phase, Dormancy Phase, and the treatment will be most effectively in hair’s Growth Phase, so patients need do the treatment 3-4 times to achieve permanent hair removal.



2.The theory of speckles/ freckle/ age spot/ sun-induced freckles removal:

To extract and decompose a plenty of pigment from skin depth by taking advantage of IPL, and to impel the pigment’s discharge from Lymphatic

by taking advantage of RF; some others will be excreted through skin’s metabolism.



3.The theory of Skin whitening/ lifting/ rejuvenating, pore shrinking, and wrinkles removal:

To stimulate the Fiberforming Tissue of the skin’s Dermal Layer, promote collagen’s forming, and accelerate cell tissue’s rearrangement by using

IPL+RF, so as to achieve the effect of skin whitening, skin rejuvenating, pore shrinking, and wrinkles removal.



4.The theory of blood vessel/ erythema removal:

The Skin Lesions Capillaries can be solidified by the light of IPL, and the RF can improve IPL’ function through locking the lesion, so the blood vessel

will be removed by Skin and Lymph System’s metabolism.  After the treatments, if the blood vessels are seemed more clear and become purple color,

that is showed that we get the best effective treatment.

Treatment Scope

1. IPL SHR Permanent hair removal;

2. Skin rejuvenation, wrinkles removal, and pigment removal;

3. Improving skin’s situation: more smooth, tender, delicate and elastic;

4. Changing complexion dark: skin whiting and uniform color;

5. Removing the pigment and scar: removing the sun-induced freckle, speckle, etc.

6. Removing the acne and blain to imprint

7. Removing the vascular lesions and blood vessel

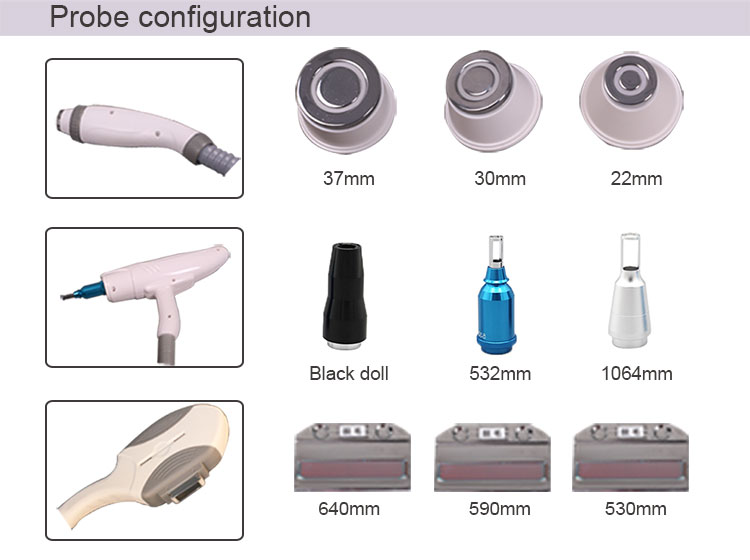

The standard configuration changeable IPL filters:

640--1200nm for hair removal

590--1200nm for spots removal freckle removal,remove red blood.

530--1200nm for skin rejuvenation,acne treatment,pigment removal,


The standard configuration changeable ND YAG LASER filters:

1064nm wavelength:

get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo, Nevus of Ota, black and blue color and so on pigmentations
532nm wavelength:

get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, shallow red and brown pigment, telangiectasis and so on.

1320nm wavelength:

Skin whitening/lifting/rejuvenation, pore shrinking, wrinkles removal

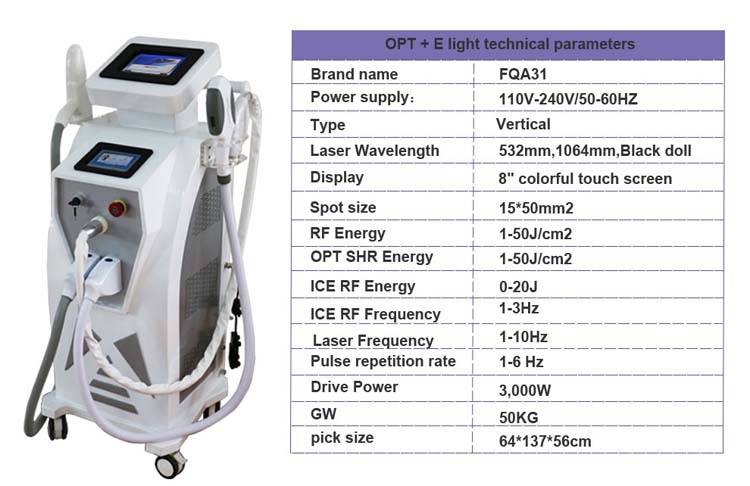

Technical Parameters:
 Model A31
 Name IPL SHR ND YAG LASER RF multifunctional beauty machine
 SHR dispaly
8inch Touch Screen
 Output Power 3000W
 Gross Weight 50KG
 Packing size 56*64*137cm
SSR&SHR Mode
 Wavelength 530nm 590nm 640nm
 Spot size 10*40mm2 / 15*50mm2(option)
 Energy 1-50J/cm2
 SR&HR Mode
 First pulse width 1-9ms
 Second pulse width 1-9ms
 First pulse delay 5-90ms
 Pulse number 1-6p/s
 Discharge interval time 1-4s
 ND YAG LASER
 Wavelengh 532nm 1064nm 1320nm
 Energy 1-2000mj
 Frequency 1-10Hz
RF function
Probe 22mm 30mm 37mm
Facial Energy 1-20j
Body energy 1-50j
 Frequency 1-10Hz
