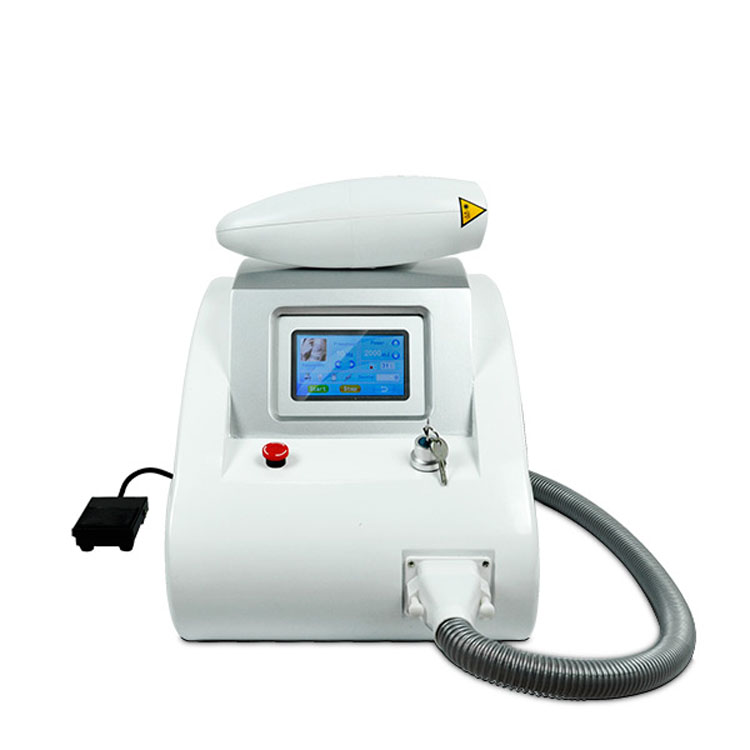

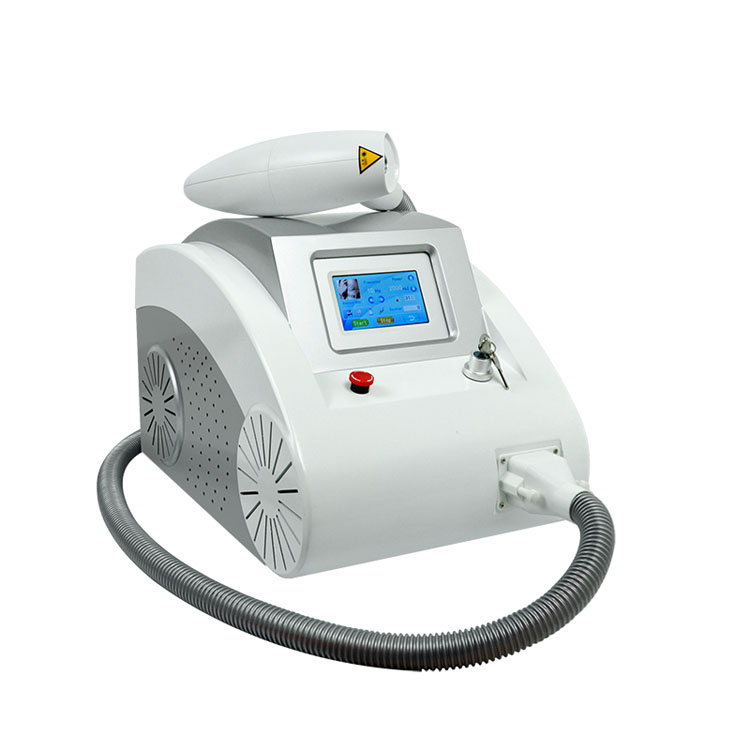

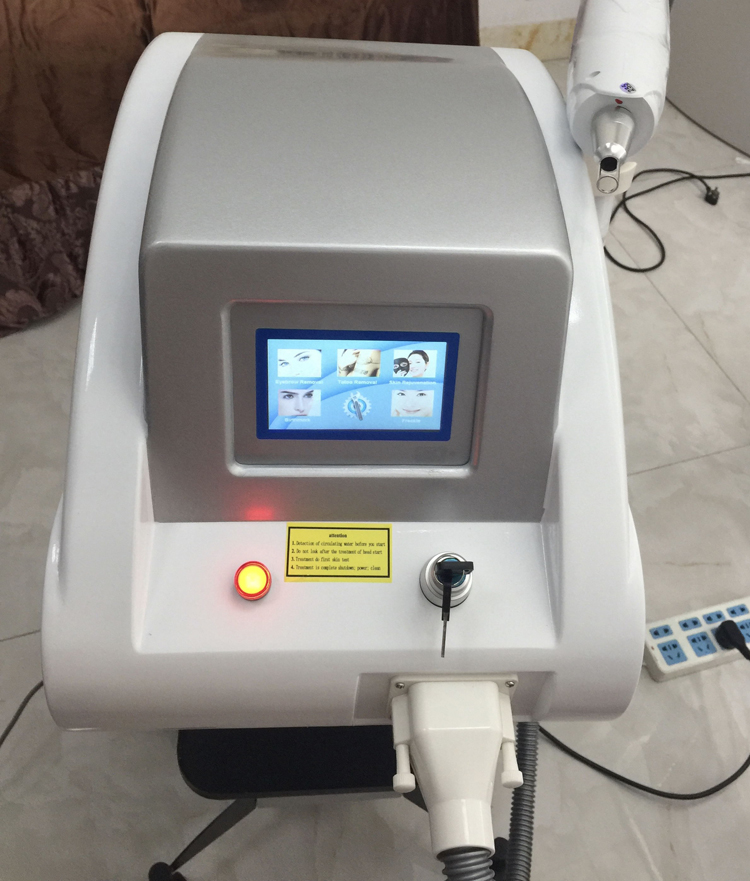

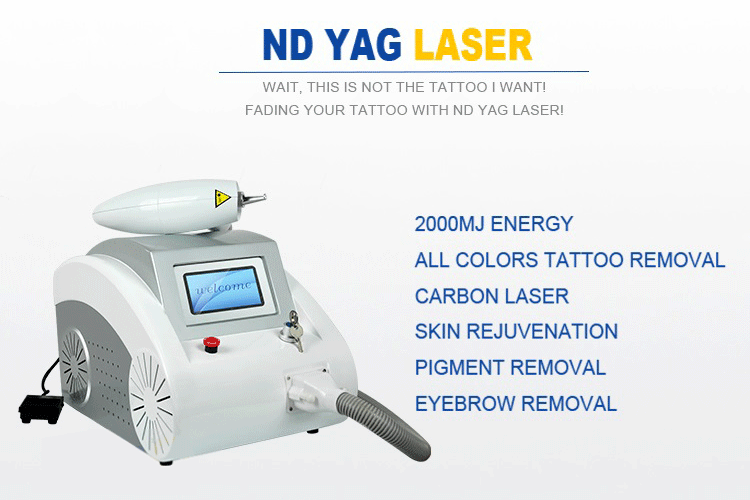

Nd yag laser tattoo removal machine

Name: Nd yag laser tattoo removal machine

Model No.: 015-1

Brand: fqbeauty

Series: Q-switched nd yag laser

Information: Remove different colors of tattoo, skin whitening,pore shrinks.


Treatment Principle



Laser pigment treatment system, adopting the gem Q mode, laser instantly launch high-energy to effectively crushed the Pigment of the diseased tissue, namely the light to blasting principles: the accumulation of high-energy laser instantly launch ,the wavelength of 1064nm , 532 nm of the laser (pulse width of about 10-20ns)instantly reach pathological changes pigmented in a very short time . the corresponding pigment group absorb light energy to heat speed expansion instantly blasting, part (epidermis) of the chromophore fragmentation in skin metabolism,part (epidermis the following organizations) Pigment is fragmented into small particles,they can be macrophage phagocytosis by macrophages to digest.Finally,they excreted through the body's lymphatic circulation,the pigment of the diseased tissue will be gradually reduced until it disappears, while the surrounding normal skin tissue does not absorb 1064,532 nm wavelength laser, and therefore almost no damage.


Q switch nd yag laser


Q-switching, sometimes known as giant pulse formation, is a technique by which a laser can be made to produce a pulsed output beam. The technique allows the production of light pulses with extremely high (gigawatt) peak power, much higher than would be produced by the same laser if it were operating in acontinuous wave (constant output) mode. Compared to modelocking, another technique for pulse generation with lasers, Q-switching leads to much lower pulse repetition rates, much higher pulse energies, and much longer pulse durations. The two techniques are sometimes applied together.

Function of machine

Endogenous pigmented skin lesions:, Ito hemorrhoids, Mongolian spot, the zygomatic brown blue nevus, coffee spots, seborrheic keratosis, nevus, junctional nevus, melanosis and blue nevus, inflammation, pigmentation, part chloasma.

The skin of exogenous pigment: tattoo, tattoo pattern liner pattern lip and traumatic tattoos and other pigmented skin lesions treatment have the outstanding effect.
Black face dolls: the contraction pore, balance grease, remove blackhead, remove acne,brightens the skin tone, firm the skin.



How will I feel during treatment?

Apart from a mild pricking sensation, most people do not experience any high level of discomfort during the procedure. Local anaesthetic cream can be used and/or pain relief, such as paracetamol, can be taken to ease discomfort if needed.

Is it the right treatment for me?

Laser tattoo removal may not be suitable if you are a darker skin type; this is due to the potential of the area leaving a ‘ghosting’ effect. This is where the skin is lighter than the surrounding area. Your practitioner will assess suitability in your consultation.

How often will I need laser tattoo removal?


You will need treatment minimum every four weeks and a course of 6-10 treatments is often enough to remove the tattoo depending on the colour and depth of the tattoo ink.



Technical Parameter

Type of laser

 Q-switched ND:YAG laser

Laser wavelength

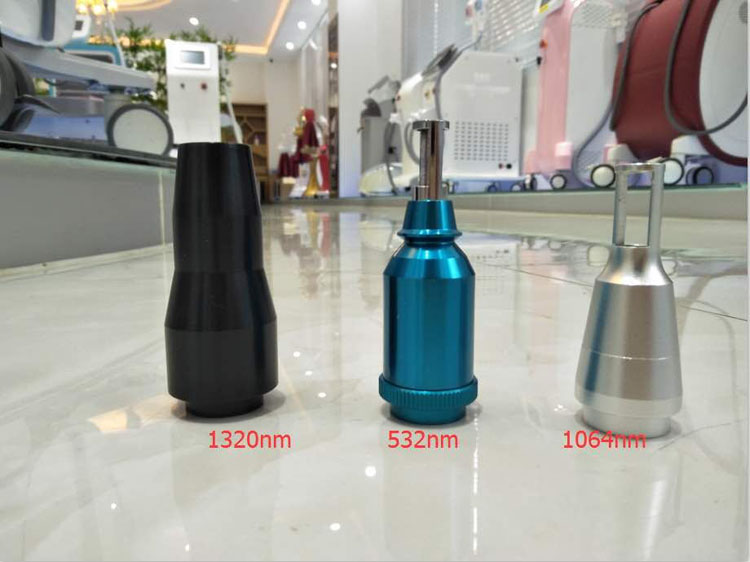

1064 nm / 532 nm/1320nm black facedoll

Energy

 500-2000mj

FWorking Frequency

1-10Hz

Language

Chinese, English, Spanish, Korean, Russian,

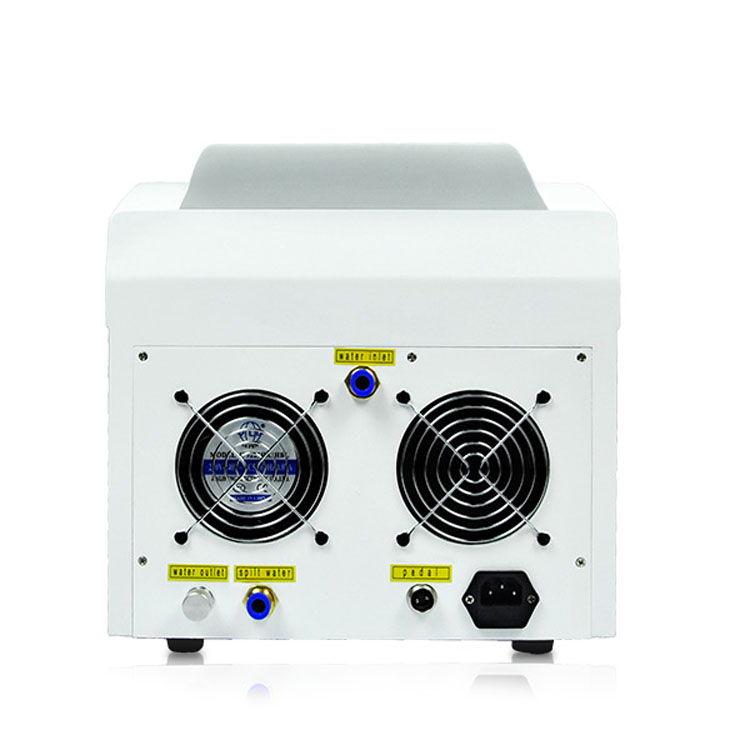

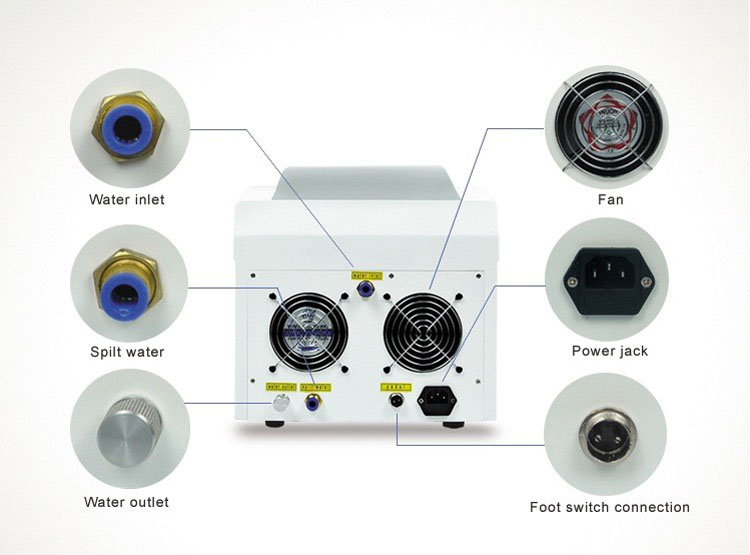

Cooling way

Water-cooled air-cooled

Packing size 60*40*48cm
Gross weight 15kg



Energy reference

application

Best frequency

distance

eyebrow

5HZ

5-10cm

Cover layer

5HZ

5-10cm

eyelid

5HZ

4-8cm

Lip outline

5HZ

4-8cm

Body tattoo

5HZ 3HZ

5-10cm

naevi

5HZ 3HZ

5-10cm

Birth mark

5HZ 3HZ

5-10cm



Operation skills for laser tattoo removal system

  Items

         times

    interval

Notice

eyebrow

1~2

30-60day

Remove eyebrow hair and protect eyeballs

eyelid

1~3

45-60day

Remove eyebrow hair and protect eyeballs

lips outline

1~3

15-45day

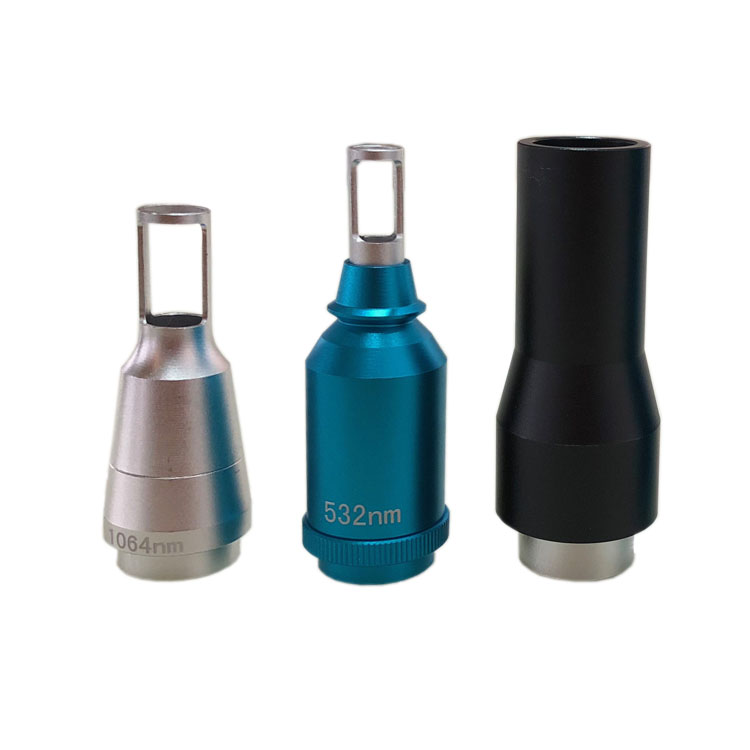

use 532mn mirror

Body tattoo

1~4

30-60day

Exude blood is effective

flecks ,aged spot

1~5

15-30day

Exude blood is effective

birth mark

3~7

45-90day

Exude blood is effective
